Vis Viva Electronics

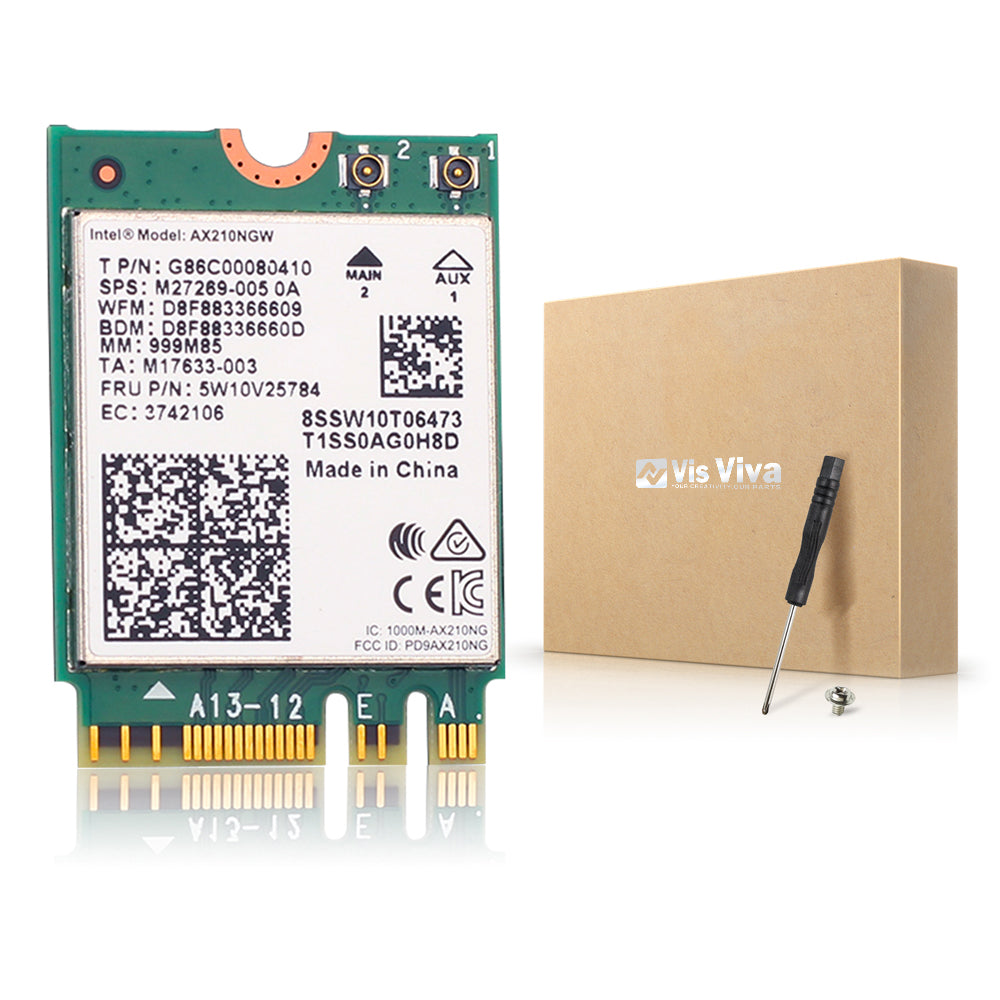

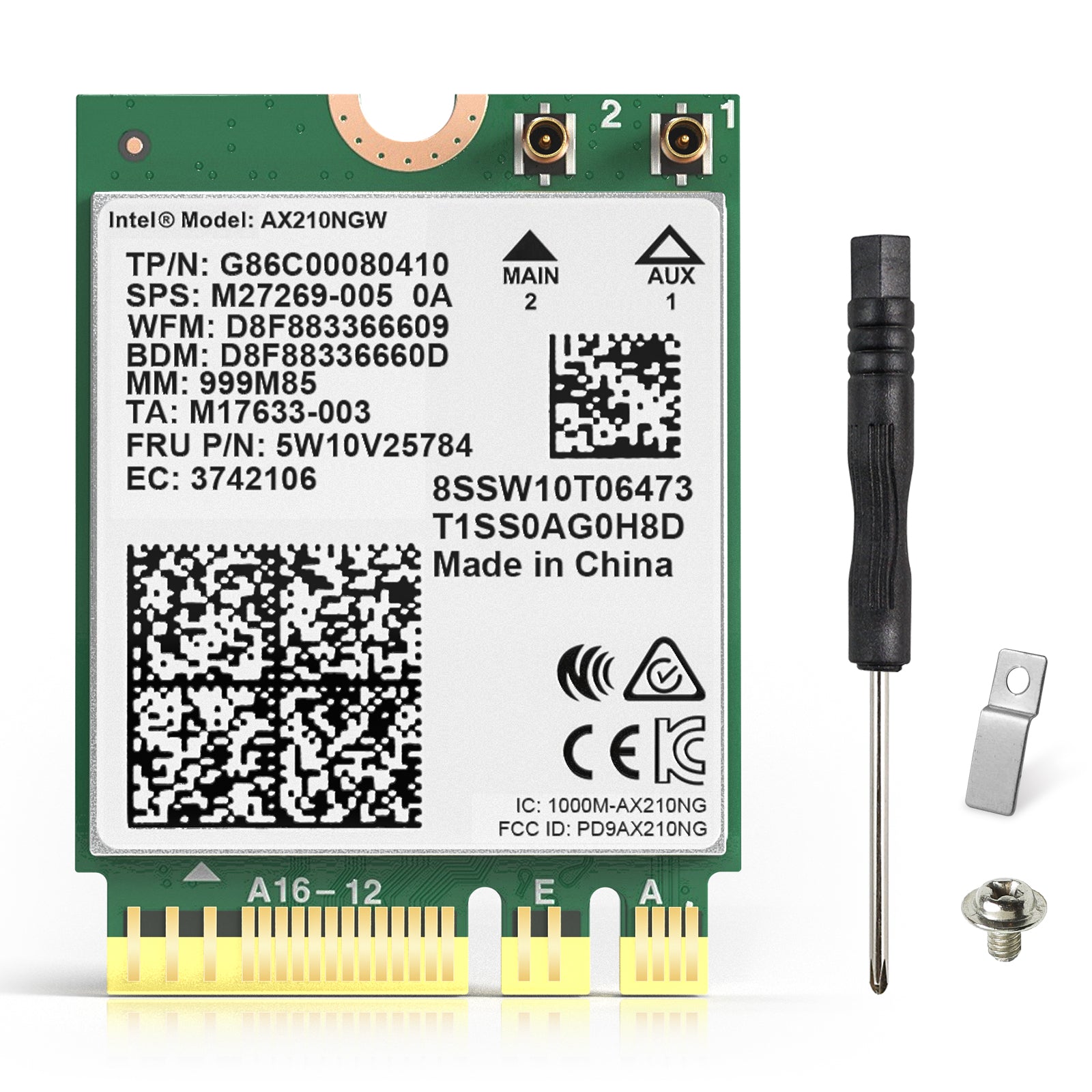

AX210NGW WiFi Card

AX210NGW WiFi Card

$19.95 USD
$23.95 USD $19.95 USD
Sale Sold out
Shipping calculated at checkout.
AX210 WiFi 6E Wireless Module Expand Signal Reception to 6GHz, Work with Laptop Integrated In M.2 Slot Features:  1. Wi-Fi 6E technology, extends Wi-Fi 6 to 6GHz. 2400 Mbps @ 6GHz , 2400 Mbps @ 5GHz , 574 Mbps @ 2.4GHz  2. BT 5.2 version, backward compatible with BT 5.1/BT 5.0/4.2/4.0  3. Only recommend to use Windows 11/10, 64 bit. Windows 10 version updates to newest version is required if driver cannot be installed.  4. WiFi 6E router is required to enable 6GHz band.  5. Wi-Fi Alliance: Wi-Fi Certified 6, Wi-Fi Certified a/b/g/n/ac, WMM, WMM-Power Save, WPA3, PMF, Wi-Fi Direct, Wi-Fi Agile Multiband  6. Works with Intel CPU and Newer AMD CPU. Do not use on a motherboard contains an Intel 9560 CNVi module.  7. Downloading the driver from the Intel website.

What’s Included

  • Raspberry Pi 5 Board only

Technical Specs

  • Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
  • VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.3
  • Dual 4Kp60 HDMI® display output with HDR support
  • 4Kp60 HEVC decoder
  • LPDDR4X-4267 SDRAM (1GB, 2GB, 4GB, 8GB, and 16GB)
  • Dual-band 802.11ac Wi-Fi®
  • Bluetooth 5.0 / Bluetooth Low Energy (BLE)
  • microSD card slot, with support for high-speed SDR104 mode
  • 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
  • 2 × USB 2.0 ports
  • Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
  • 2 × 4-lane MIPI camera/display transceivers
  • PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
  • 5V/5A DC power via USB-C, with Power Delivery support
  • Raspberry Pi standard 40-pin header
  • Real-time clock (RTC), powered from external battery
  • Power button

FAQ

Will older versions of Raspberry Pi OS work with Raspberry Pi 5?

The current version of Raspberry Pi OS, Trixie, and the legacy version, Bookworm, work with Raspberry Pi 5. Versions older than Bookworm do not.

Will my Raspberry Pi 4 power supply work with Raspberry Pi 5?

Raspberry Pi 5 is a higher-performance computer than Raspberry Pi 4, and you may have problems using an under-powered supply. We recommend a high-quality 5V 5A USB-C power supply, such as the new Raspberry Pi 27W USB-C Power Supply.

Will my Raspberry Pi 5 fit my Raspberry Pi 4 case?

Raspberry Pi 5 won't fit the Raspberry Pi 4 Case. We recommend the Raspberry Pi Case for Raspberry Pi 5, designed to help you get the most out of our newest computer.

Does Raspberry Pi 5 need active cooling?

Raspberry Pi 5 is faster and more powerful than prior-generation Raspberry Pis, and like most general-purpose computers, it will perform best with active cooling. The Raspberry Pi Case for Raspberry Pi 5, with its integrated fan, is one way to provide this.

View full details
